Vehicle Fitment
Universal for 2.5-3.0L Engines.
Specification
Exhaust Inlet Flange: V-Band
Exhaust Outlet Flange: V-Band
Turbine Trim: 80.7
Turbine A/R: 0.82
Turbine Inducer Diameter: 60mm
Turbine Exducer Diameter: 55mm
Compressor Trim: 52.8
Compressor A/R: 0.63
Compressor Inducer Diameter: 51.5mm
Compressor Exducer Diameter: 70.9 mm
Oil feed/inlet: 7/16"-24
Oil drian/outlet: M8*1.25/37.8
Water inlet/outlet: M14* 1.5
Pressure Control: Handle up to 3.0 Bar(43.5psi)
Cooling Type: Oil Cooling
Horsepower: 500hp
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size:29.5*25.8*32.8 cm
Package Weight: 8100g

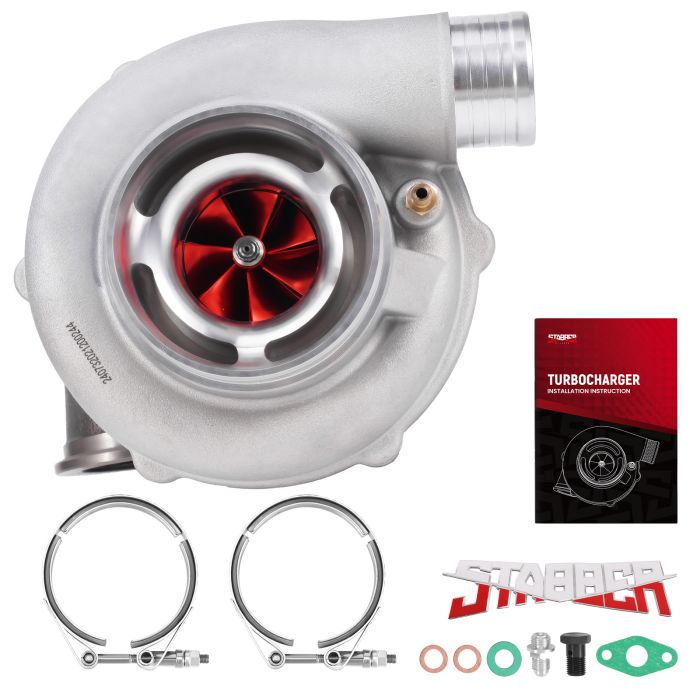

Package included
1x Turbocharger
2x Oil Gaskets
2x V-Bands
2x Washers
1x Stud bolt
1x Oil Inlet Bolt
1x Manual
1x Sticker
Description
● Product Material
1. Stainless Steel Turbine Housing
Engineered for high-temperature resistance up to 1020℃, ensuring durability and reliability under various conditions.
2. K419 Alloy Turbine Wheel: Offers high oxidation stability and resistance up to 1000℃, providing robust performance and longevity.
3. ZL104 Aluminum Compressor Housing:
Constructed from lightweight ZL104 aluminum, enhancing efficiency and overall turbocharger performance.
4. Point Milled Billet Compressor Wheels
Fully CNC machined and delivers a broader horsepower range and maximum boost response.
5. Dual Ceramic Ball Bearing
Ensure precise dynamic balance, thus enhance overall performance for smooth and stable operation
● Product Performance
1. Racing Performance Turbocharger
Designed to meet the rigorous demands of racing turbo applications under demanding conditions.
2. Superior High-Temperature Resistance, high efficiency and durability to withstand extreme thermal conditions.
3. Expert Turbo Production:
Backed by rich experience in turbocharger manufacturing and supported by an in-house factory.
4. High-Speed Oil Seal Ring and Precision Clearance
Ensures optimal performance through precise engineering and robust sealing.
● Technology Advantage
1. 100% Balancing Test by TURBOTECHNICS VSR3:
Guarantees perfect balance and performance, ensuring reliability and lifespan.
2. G3-min-Flow VNT Turbo Testing:
Advanced testing for precise turbocharger performance and efficiency.
3. Advanced Actuator Tester/Programmer:
Utilizes cutting-edge technology for accurate actuator performance and programming, ensuring optimal functionality.
Warranty Policy
1 Year Limited Warranty
