Honda Civic CRX D16 D16A D16Y7 D16Y8 D16Z6 137mm H-Beam Forged 4340 Connecting Rods Conrods+ARP Bolts

Vehicle Fitment

For Honda Civic CRX D16 ZC SOHC VTEC D Series：
for 1986–89 Acura Integra (USA)
for 1986–89 Acura Integra (Australia)
for 1988–1991 Honda Civic Si, CRX Si
for 1990-1991 Civic EX (4dr), Civic Wagon RT4WD
for 1988–1991 Civic GTi in New Zealand
for 1988–1989 Civic models in Europe (ED4, ED7)
for 1995 Civic models in New Zealand (EG4)
for 1988–1995 Models in South Africa
for1998–2000 Honda Civic GX
for 1996–2000 Honda Civic HX
for 1996 Honda Civic EX (sedan Peruvian version)
for 1996–2000 Honda Civic VTI
for 1992–1995 Honda Civic Si
for 1992–1995 Honda Civic EX, EX-V
for 1992–1995 Honda Civic ESi (European Market)
for 1993–1995 Honda Del Sol Si (US)
for 1993–1996 Honda Del Sol ESi (European)
for 1992-1995 Honda Civic RTSi
for 1996–2000 Honda Civic EX Coupé
for 1991–1993 Honda Civic Ferio EJ3 (For JDM)
for 1992–1995 Honda Civic EJ1 (For JDM)
for 1992–1995 Honda Domani MA4 (For JDM)
for 1993-1997 Honda del Sol (Si)
Pin Type: Floating Pin Piston
(Note: Please confirm the dimensions before purchase the connecting Rods)

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

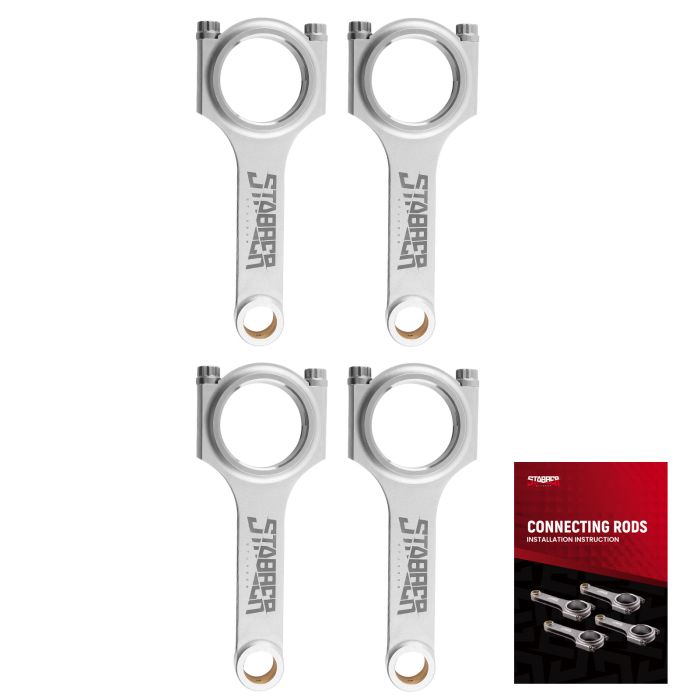

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Brand: STABBER
Weight: 5.62(lbs)
Dimensions: 11.02x7.87x4.33(inch)

Description

• Premium Material
Constructed from forged SAE 4340 Chrome Moly Steel, ensuring the highest strength and durability, specifically designed for high performance racing applications.

• ARP 2000 Bolts with optional upgrade to ARP L19 bolts available.

• H-Beam Design
Improved strength, rigidity, and resistance to deformation under high-performance engine conditions.

• Enhanced Durability
Heat-treated and shot-peened to maintain consistency and strength and eliminate potential stress risers.

• High precision CNC machining
Exact rod cap alignment dowels for optimal performance and reliability.

• Accurate Bores finished to +/- .005mm；
Bores finished to a tolerance of +/- 0.005mm, ensuring perfect fit and function.

• Balanced Weight to within +/- 1 g per rod；
Meticulously balanced to within +/- 1 gram, guaranteeing uniform weight distribution and exceptional performance.

• Horsepower Rating 600~800HP
Designed to handle power outputs ranging from 600 to 800 horsepower to support high-performance applications with ease.

• RPM Rating 7000-9000 rpm
Capable of withstanding engine speeds 7000-9000 rpm to endure the demands of high-revving engines, ensuring reliable performance

• Exceptional Fastener Strength 200,000 - 230,000 psi
Exhibit a tensile strength ranging from200,000 - 230,000 psi , providing superior durability and stability under extreme loads and pressures.

• In compliance with ISO 9001 Certified Manufacturing Standards

Warranty Policy

1 Year Limited Warranty
